Installation Tips
Recommended Installation Tips
  1. Install corner post plumb and straight.
  2. Use a string line to ensure fence is straight.
  3. Dig holes 10 feet on center and 27 inches deep to ensure bottom rail is approximately 12 inches above ground.
  4. After corner post is installed slide rails into corner and then into the second post.
  5. Tamp dirt around each post as it is installed.
  • Ensure that the widest side of the rail is up.
  • Continue installing rails and posts until line is complete.

Gates are 48 inches wide and require a 50 inch opening.

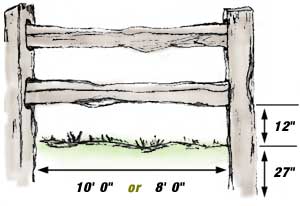

Installation Tips Diagram
